Products


We offer different add-on modules (MIKSs) to spectrally broaden and temporally shorten your pulses. The output pulses duration strongly depends on the input pulse duration.

MIKS1 S

MIKS1 M

MIKS1 L

MIKS12

MIKS12_UP

Input energy

Input pulse duration

Maximum average power

Compression factor

Efficiency

Output pulse duration

Beam positional stability

Average power stability

1 - 200 μJ

200 - 500 μJ

500 µJ - 3 mJ

50 - 300 μJ

200 fs - 3 ps

Up to 100 W     (HP-version: >100 W)

Up to 15 x

Up to 10 x

> 90 %

< 45 fs

15 - 30 x

15 - 45 x

> 80 %

< 15 fs

< 10 fs

< 1 % of beam diameter

< 0.5 % RMS

Footprint

36 x 25 cm²

60 x 25 cm²

90 x 20 cm²

80 x 60 cm²

MIKS1_S Multipass Pulse Compressor Stage for Spectral Broadening of Femtosecond Lasers.png

Input energy: 1 - 200 µJ


Output pulse : < 45 fs

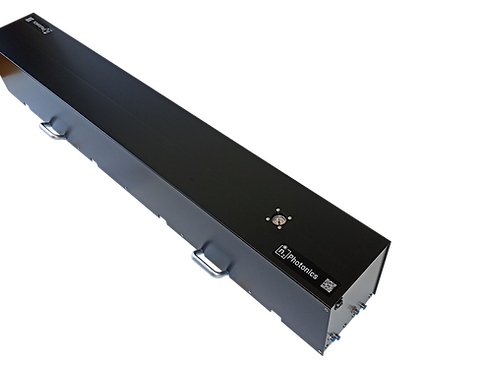

MIKS1_L Multipass Pulse Compressor Stage for Spectral Broadening of Femtosecond Lasers.png

Input energy: 500 µJ - 3 mJ


Output pulse : < 45 fs

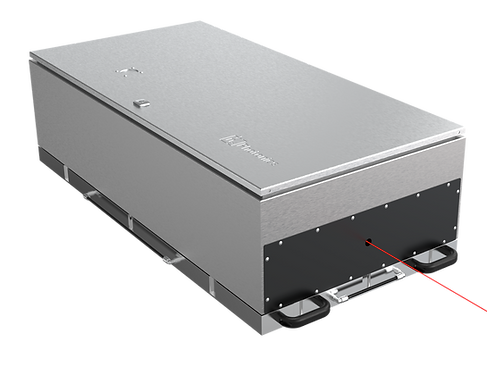

LAMIKS Multipass Pulse Compressor Stage for Spectral Broadening of Femtosecond Lasers.png

Our Stand-Alone Laser System

Coming Soon

MIKS1_M Multipass Pulse Compressor Stage for Spectral Broadening of Femtosecond Lasers.png

Input energy: 200 - 500 µJ


Output pulse : < 45 fs

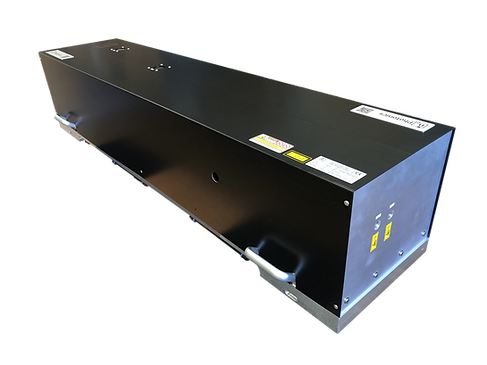

MIKS12 Multipass Pulse Compressor Stage for Spectral Broadening of Femtosecond Lasers.png

Input energy: 50 - 300 µJ


Output pulse : < 15 fs / <10 fs
