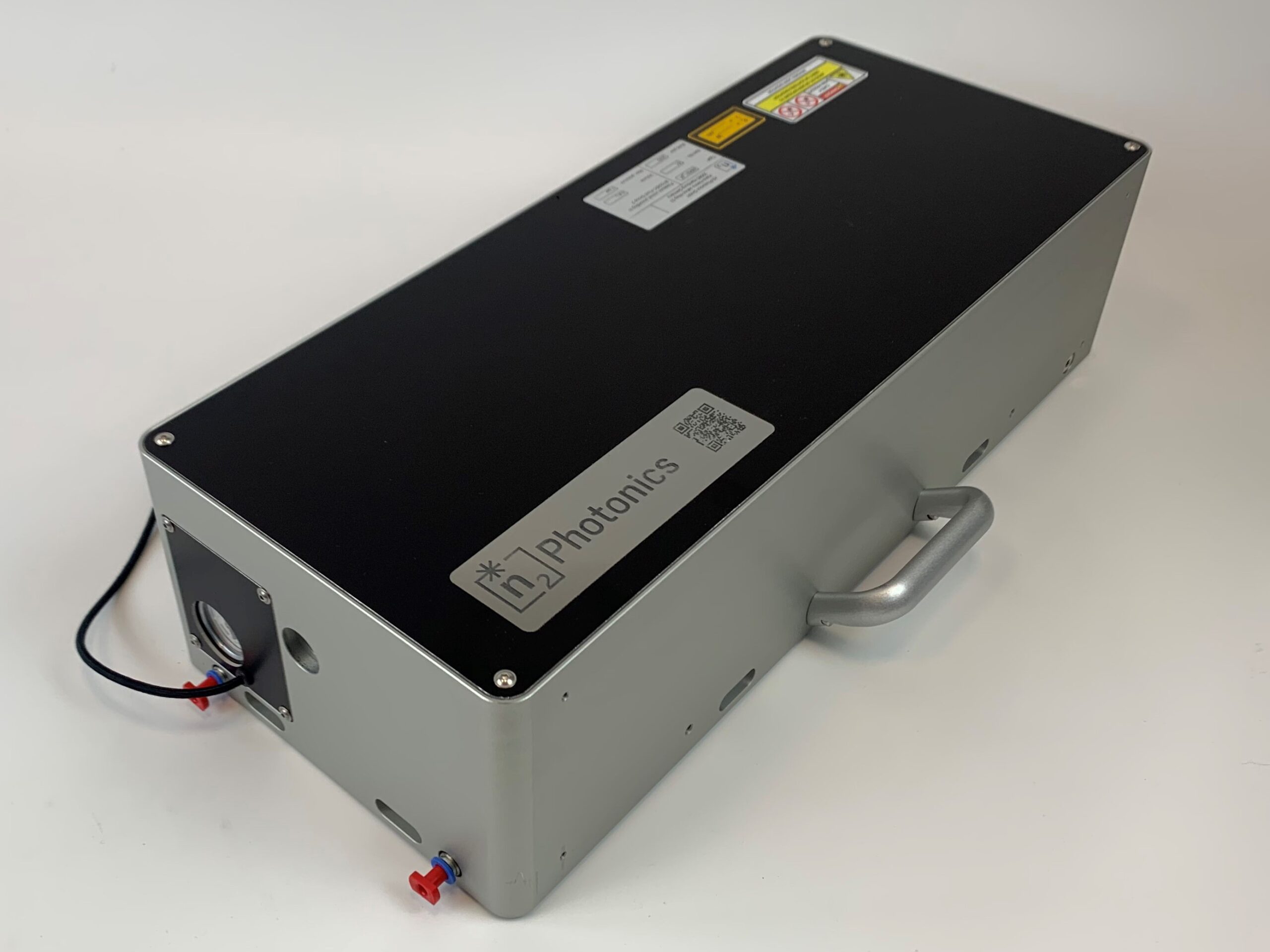

Single Stage Unit MIKS1_M​

​​

  • Compatible with any repetition rate and pulse-on-demand laser system

  • Stable 24/7 operation

  • Simple integration with existing laser systems

  • No active optical elements

  • No mechanically moving components

  • No maintenance required

  • Runs in harsh environments (e.g. dust or vibration)

Multipass Spectral Broadening and Pulse Compression_MIKS1_M_Ultrafast laser femtosecond pu
Multipass Spectral Broadening and Pulse Compression_MIKS1_M_Ultrafast laser femtosecond pu

press to zoom

press to zoom

press to zoom
Multipass Spectral Broadening and Pulse Compression_MIKS1_M_Ultrafast laser femtosecond pu
Multipass Spectral Broadening and Pulse Compression_MIKS1_M_Ultrafast laser femtosecond pu

press to zoom
1/5
PERFORMANCE

  • Up to 10x shorter pulses (<45 fs)

  • From 100 μJ to 300 μJ input energy

  • Over 100 W average power


FEATURES

  • Over 90% transmission

  • 24/7 operation

  • No maintenance

  • Small footprint: 36 x 27 cm²

  • Adjustable beam height: >90 mm

Ready-to-go pulse compression

Output spectrum



Far field beam profile

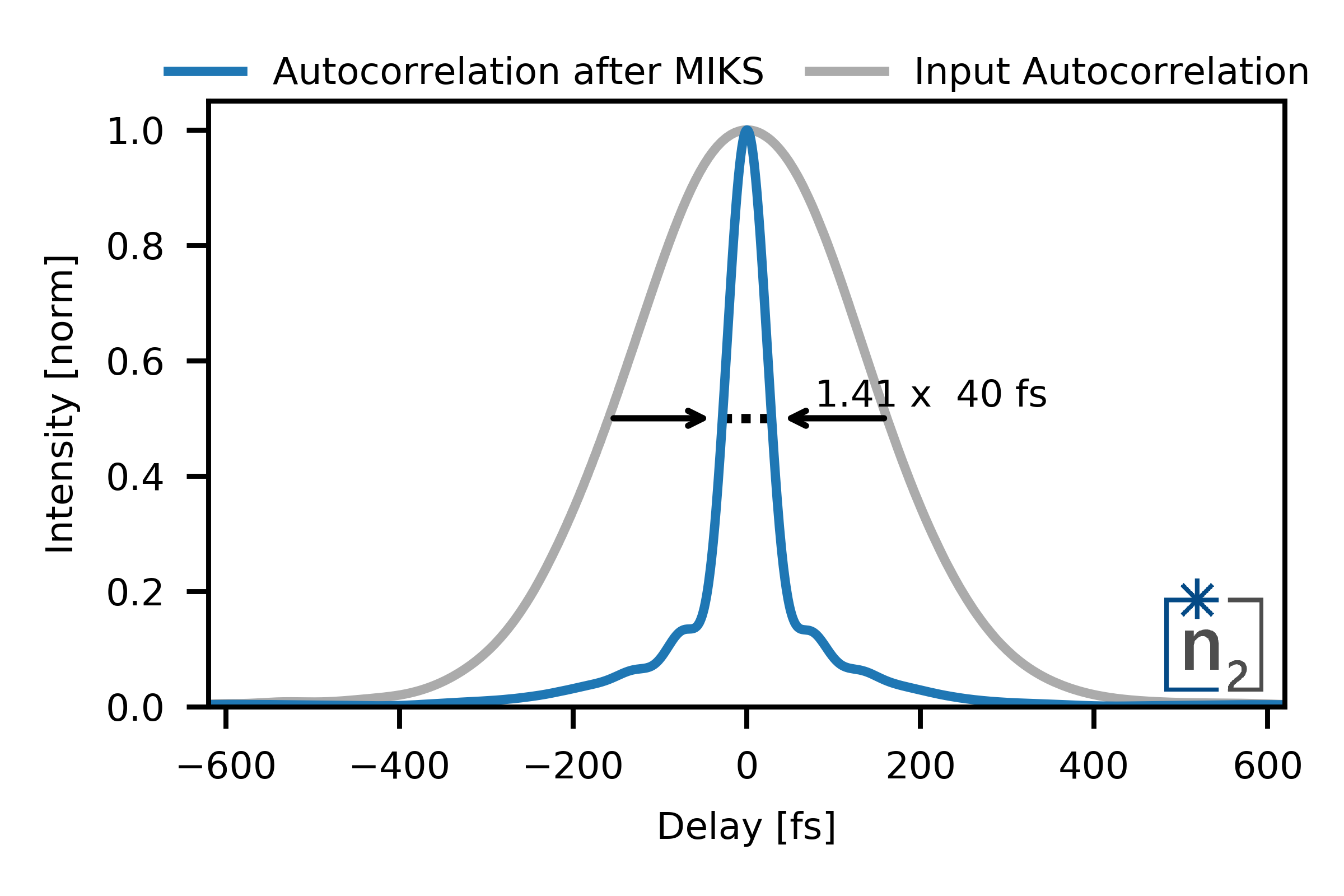

Output autocorrelation



Beam position stability


MIKS1_M_positional stability.png

Average power stability


MIKS1_M_power stability.png

All measurements shown in this datasheet were performed with PHAROS laser system (Light Conversion).
